A shop in Ohio pulls a hub, replaces a seal, reinstalls the bearings, and sets the adjustment. The truck leaves that afternoon and does not come back. Eleven months and 80,000 miles later the same wheel end runs hot outside Flagstaff, the driver smells gear oil, and the fleet is looking at a spindle that may not be salvageable. Nobody connects the two events, because nobody could. The failure and its cause are separated by most of a year and half a continent.
Wheel ends are the part of a truck preventive maintenance program where the gap between doing the work and seeing the result is widest. Almost every other system gives you feedback. A bad brake job pulls. A bad alignment eats a tire you can look at. A wheel end assembled slightly outside specification does exactly nothing for tens of thousands of miles, and then it does everything at once.

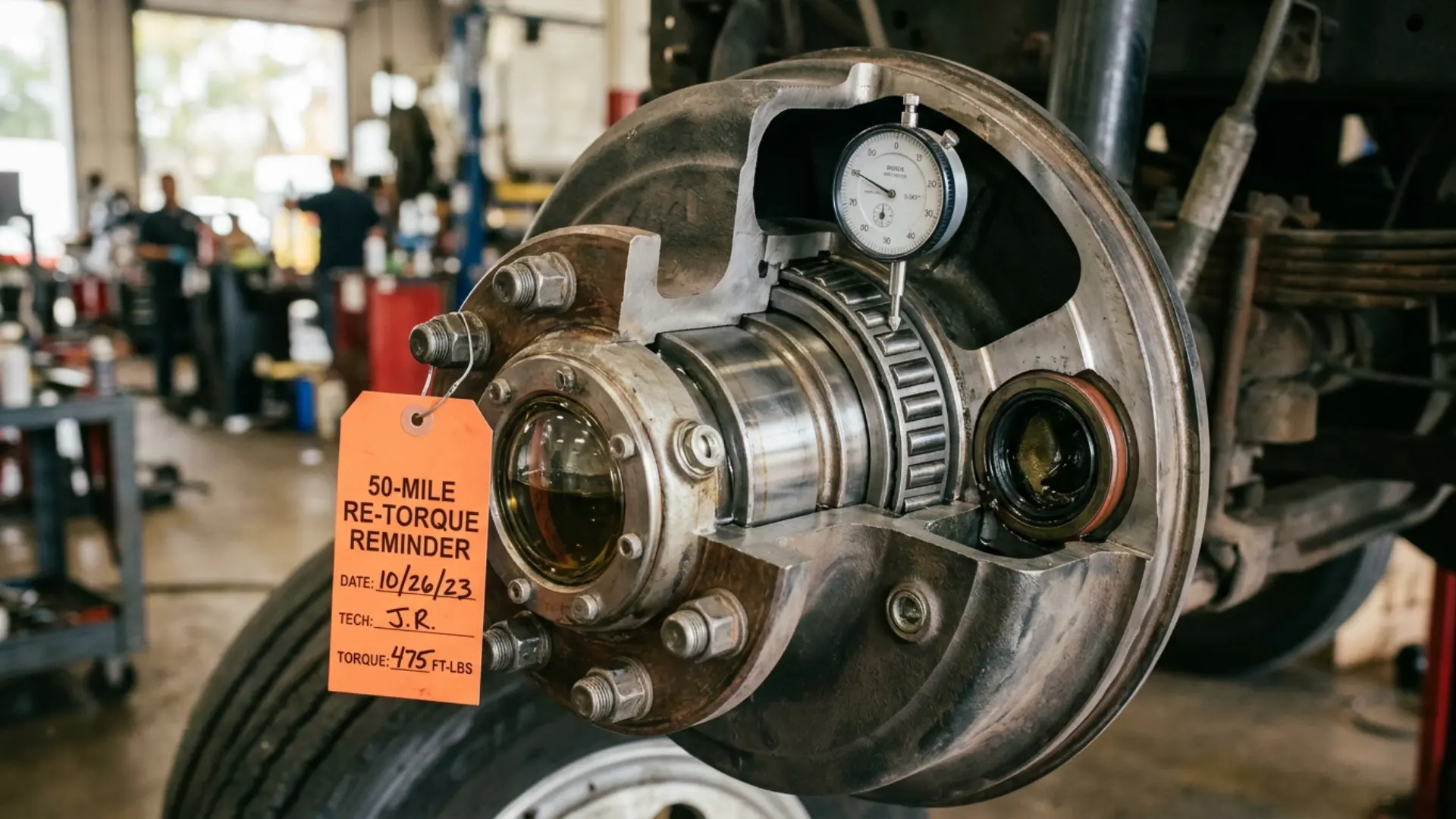

Wheel bearing adjustment is a precision procedure that looks like a routine one. After the outer bearing and nut system are installed, bearings are adjusted in accordance with TMC Recommended Practice 618, which calls for endplay between 0.001 and 0.005 inches. That is a working window of four thousandths of an inch.
Russ Kolany, heavy duty key account manager at bearing and seal manufacturer SKF, describes the margin in terms that make the practical difficulty clear: there is not much room for error in bearing adjustments, and the margin is around the thickness of two human hairs. Vincent Purvis, product manager for engineered products at Stemco, makes the diagnostic point alongside it, that these clearances are critical to wheel-end health and are a key indicator of how the wheel end is performing when it is inspected.
Too tight and the rollers bind, generating heat that breaks down lubrication and destroys the bearing from the inside. Too loose and the assembly works against itself under load, wearing the races and letting the seal move in ways it was not designed to. Neither condition produces a symptom on the day the work is done. Both produce a failure eventually, and the interval between the two is long enough that the shop that set the adjustment will never learn it was wrong.
There is a second procedure attached to wheel work that fails structurally for over-the-road operations rather than through negligence.
Any wheel that comes off and goes back on requires a torque verification after the first 50 to 100 miles of return service. This is standard practice for a mechanical reason: even a correctly torqued wheel can seat further into the hub pilots under the vibration and load of the first run, which changes the effective clamp force holding the assembly together. The check takes minutes. Skipping it is a documented contributor to the wheel-off incidents that make trade press headlines.
Now consider where the truck is 50 to 100 miles after leaving a shop in an unfamiliar market. It is on the interstate, loaded, headed somewhere else. The shop that performed the work is behind it and will not see the truck again. The fleet is several states away. Nobody is positioned to perform the verification, and in most cases nobody has been assigned to.
This is not a shop quality problem. A shop that does excellent wheel-end work still cannot re-torque a truck that has left its market. It is a coordination problem specific to fleets whose trucks are serviced wherever they happen to be, and it is invisible until it is not.
The financial spread between catching a wheel end early and catching it late is unusually wide even by fleet maintenance standards.
A wheel bearing replacement performed as scheduled service runs roughly $800 to $1,500 per wheel end. When the bearing has been allowed to seize and the spindle and hub assembly need replacing, that figure climbs past $8,000, before the tow and the downtime. Properly maintained bearings reach 500,000 miles or more. Bearings that miss their service interval typically fail somewhere between 200,000 and 300,000 miles, with a common repack interval of 100,000 to 150,000 miles or 24 months, compressing to 50,000 to 75,000 miles for heavy haul, dusty routes, or extreme temperature operation.
The compliance exposure runs alongside the repair cost. Wheel bearings and hubs are among the required inspection items under 49 CFR 396.17 and Appendix A to Part 396. CVSA out-of-service criteria treat hub oil or grease leaking from the hub to the outer wheel as a citable violation, with a leaking wheel seal citable separately. Two or more missing lug nuts on the same wheel puts a truck out of service on the spot.
The aggregate numbers explain why enforcement pays attention. When CVSA made wheel ends the focus area of the 2022 International Roadcheck, inspectors ran 59,026 inspections and placed 12,456 vehicles out of service, with wheel-end violations accounting for 22.8 percent of all vehicle out-of-service violations across North America. NTSB has identified loss or breakage of wheel fasteners and wheel bearing failure as the most common causes of truck wheel separations, and attributes both primarily to improper maintenance rather than component defect.
The liability tail is the part that reaches furthest. The trailer maintenance article on this site covers court cases where wheel-end failures produced significant jury awards against fleets, with the maintenance record serving as the central exhibit. A wheel end with no documented service history, adjusted by a shop nobody recorded, is a difficult position to defend from.
If your fleet has had wheel-end work performed at shops outside its regular network in the past year, whether the endplay was set to specification and whether the re-torque was ever completed are currently unknown rather than confirmed. A coordinated preventive maintenance program that records which shop performed which service on which unit at least converts that from unknown into traceable.
Endplay cannot be checked from the yard, but the signals that precede a wheel-end failure can, and most of them are observable by a driver during a pre-trip or by anyone walking the truck.
Hub temperature is the most useful single check, but the standard is frequently misunderstood. The number that matters is not an absolute threshold. It is the relative difference between adjacent wheel positions on the same truck. A hub running meaningfully hotter than its neighbors is telling you something regardless of whether it has crossed some fixed temperature figure.
Hub oil level and clarity in the sight glass on oil-bath configurations is a direct read on both lubrication and seal integrity. Oil that is low, discolored, or visibly contaminated indicates a problem developing inside the assembly. Any weeping at the seal is worth flagging before it becomes the CVSA-citable leak described above.
On the fastener side, the warning signs are visual and specific: rust streaks running from the lug nuts, shiny wear marks where components have been moving against each other, visible wobble, or elongated stud holes. Bearing distress announces itself through heat, oil leaks, hubcap damage, smoke, noise, or harshness in the ride. None of these require a technician to identify. They require someone to be looking, which is a function of whether the pre-trip inspection is a real inspection, a subject the pre-trip inspection quality article covers in detail.
Wheel-end work is the clearest case in fleet maintenance for documenting not just what was done but who did it and to what specification. When the failure surfaces a year later, the maintenance file is the only mechanism that connects it back to the service event that caused it.
A work order that records the endplay measurement achieved, identifies the technician, and notes whether the 50 to 100 mile re-torque was scheduled or completed gives a fleet something to work with. An invoice that says "wheel seal and bearing service" gives it nothing, and that second format is what fleets routing trucks through unfamiliar shops most often receive. The FMCSA maintenance records article covers the documentation standard in full, and wheel-end work is where the gap between a billing record and a maintenance record carries the highest consequence.
If you want to look at whether your fleet's wheel-end service history is documented well enough to trace a failure back to its source, the fleet maintenance plans page covers how per-unit service records and shop coordination work together. To review your own records against that standard, reach out through the contact page with your fleet profile and recent service history.
