A fleet notices a steer tire wearing on the outside edge. The truck goes in for an alignment. Four months later the replacement steer is wearing the same way in the same place, so the truck goes in for another alignment. Nobody questions the alignment shop, because the truck was aligned correctly both times. The shop did exactly what it was asked to do.
The problem is that alignment is an outcome, not an input. The angles a shop sets are held in place by physical components: kingpins, bushings, tie rods, springs, and air bags. When those components are worn, the geometry drifts back out of specification as soon as the truck is loaded and moving, and the alignment the fleet paid for stops being true within weeks. Proper truck diagnostics repair sequencing catches this before the alignment is purchased, not after the second set of tires is destroyed.
Before any alignment angle can be set correctly, the chassis has to be sitting at the right height. Caster, camber, and toe are all measured relative to the vehicle's geometry, and that geometry shifts when the truck is not sitting where the manufacturer assumed it would sit.
Capital Truck Repair's analysis of common alignment mistakes puts this first for a reason: they describe seeing trucks aligned to incorrect specifications because the air bags were not inflated properly or the leaf springs were sagging, calling it a foundational error that throws off every adjustment that follows. An alignment performed on a truck sitting low on a sagging spring pack is not a wrong alignment. It is a correct alignment to the wrong reference, which is worse, because the paperwork says the truck is in spec.
Incorrect ride height skews caster angle, which produces unstable steering and driver fatigue. It also increases bushing and shock wear, meaning the ride height problem accelerates the wear of the components that were supposed to hold the alignment in the first place. On air suspension, this means confirming the leveling valves are calibrated and the bags are holding pressure before anything is measured. On leaf spring configurations, it means checking for broken leaves and sagging packs.
Steer axle kingpins are the pivot point the entire front end turns on, and when they develop play, no alignment setting will stay where it was put. Worth distinguishing these from the fifth wheel kingpin on a trailer, which is an entirely different component that shares the name.
Duane Rasmussen, instructor of Medium and Heavy Truck Technology at Hennepin Technical College and an ASE Certified Master Truck Technician, describes the wear sequence directly: improper lubrication of kingpin bushings causes the kingpin contact points to wear at the steering knuckle, and the symptoms that follow are incorrect vehicle alignment, premature and uneven front tire wear, and rough handling, sometimes progressing to a shaking cab or steering wheel. The alignment problem is a symptom of the kingpin wear, not an independent condition to be corrected on its own.

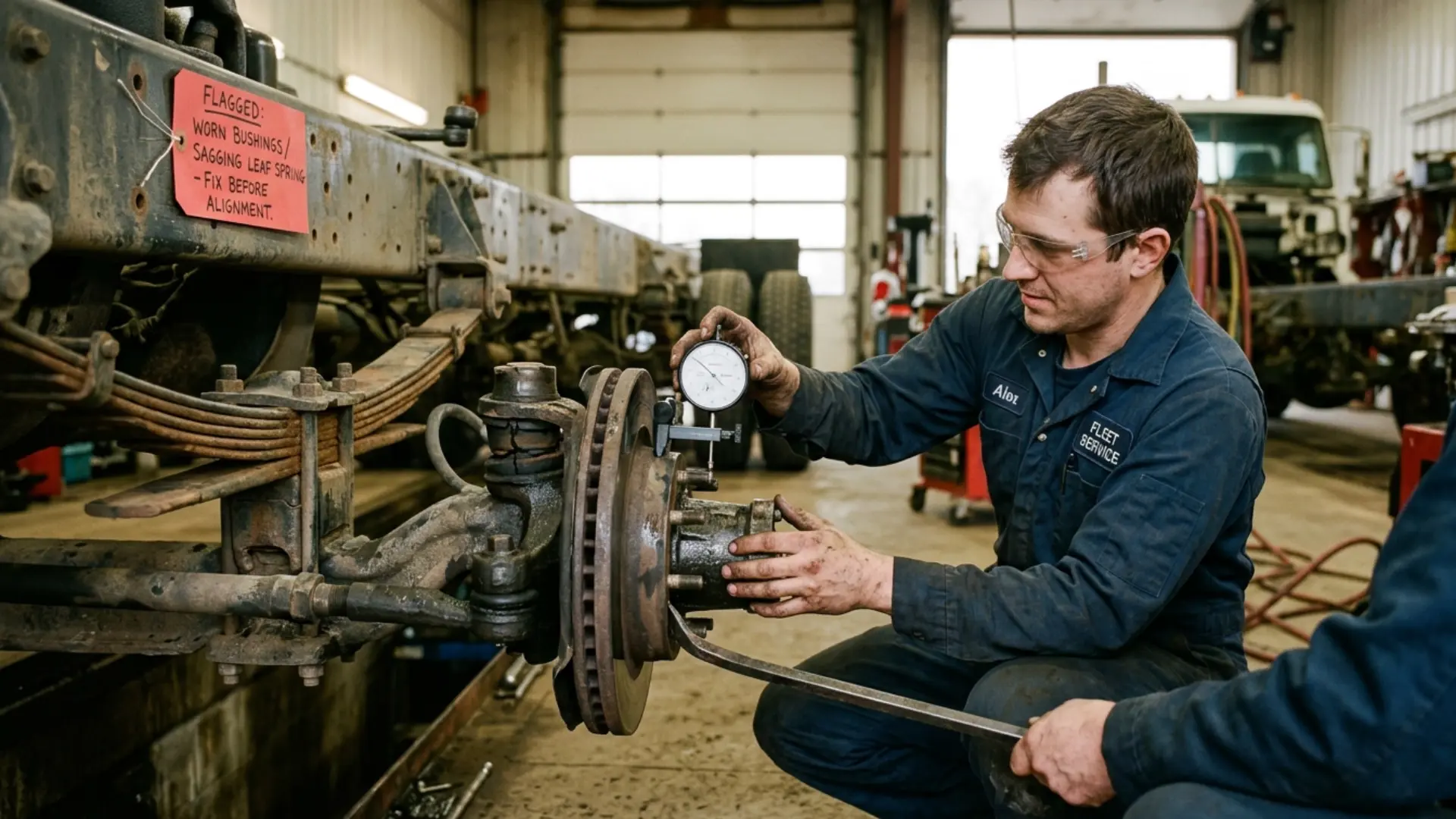

The measurement standard is specific and checkable. Axial and lateral movement should not exceed 1/8 inch, or .120 inch measured with a dial indicator. That same 1/8 inch threshold has regulatory consequence: kingpins are inspected during DOT inspections, and movement beyond that limit can flag the truck for an out-of-service order, which converts a maintenance issue into a downtime and compliance event.
The encouraging part of Rasmussen's assessment is the service life. Kingpins have a life of roughly 750,000 miles, meaning that with proper lubrication they typically only require replacement once during a truck's operating lifetime. The job itself runs about eight hours to ream the bushing and replace the pin. A fleet that maintains kingpin lubrication on schedule is largely buying itself out of this failure mode. A fleet that treats lubrication as optional is buying the eight-hour repair early, plus the tires that wore out while the kingpins were loose.
Beyond ride height and kingpins, the components that keep an alignment in place are the ones that wear quietly enough to be missed during a routine walk-around.
Tie rods and ball joints develop play that lets the wheel position shift under load. Inland Kenworth's service guidance makes the operational point plainly: worn tie rods, ball joints, and bushings prevent a vehicle from holding a proper alignment at all, which is why their recommended first step when a truck presents with alignment symptoms is to have the suspension inspected to determine whether the problem is actually the alignment.
Shocks are the component most likely to be written off as still functional because they are not visibly leaking. A shock that has lost its damping ability allows the tire to bounce rather than maintaining consistent road contact, which produces cupping and irregular wear patterns that look like alignment problems and are frequently treated as such.
Bushings across the suspension, at torque rods, spring eyes, and equalizers, are inexpensive individually and consequential collectively. Component cost data from published fleet maintenance sources puts shocks at roughly $150 to $400 each, bushings at $150 to $300 per set or location, and air bags at $200 to $600 each, with leaf spring repair running $800 to $1,500 per axle. A full suspension repair falls in the $500 to $3,500 range depending on scope.
Those numbers matter in comparison to what they prevent. The fleet tire management article on this site covers the tire-side economics of alignment in detail, including what a steer axle out of specification costs across a tire's service life. This article is the other half of that equation: the reason an alignment performed without a component inspection does not deliver those savings.
If your fleet has paid for the same alignment on the same unit more than once in a twelve-month period, the alignment was almost certainly not the problem being solved. A coordinated preventive maintenance program that maintains per-unit service history catches a repeat alignment on the same truck as a pattern rather than as two unrelated service events approved four months apart.
The order of operations is what separates an alignment that holds from one that does not.
Inspection comes first: ride height verified against specification, kingpin play measured against the 1/8 inch standard, tie rods and ball joints checked for play, shocks assessed for damping rather than just for leaks, and spring packs and air bags checked for sag or pressure loss. Any component outside specification gets repaired before the alignment is scheduled, not after.
The alignment comes second, once the geometry has something solid to hold it. Capital Truck Repair recommends a mileage-based alignment schedule in the range of every 50,000 to 70,000 miles, with an additional alignment triggered after any major suspension work or curb strike. That second condition matters: replacing kingpins, bushings, tie rods, or shocks changes the geometry, so suspension work should always be followed by an alignment rather than assumed to have restored the previous settings.
For multi-axle configurations, adjusting the steer axle alone does not resolve the problem. Drive axle and trailer axle alignment relative to the steer axle determines whether the truck tracks straight, and a tractor-trailer with a squared steer axle and a misaligned drive axle will still scrub tires and consume fuel fighting itself down the road.
A shop that receives a truck with an instruction to align it will align it. That is the job it was given. Whether anyone inspected the kingpins first depends entirely on whether the shop was asked to, whether it has the truck's service history, and whether someone on the fleet's side is tracking that this same unit was aligned four months ago.
For a fleet running trucks through whatever shop is convenient in whatever state the truck happens to be in, none of those conditions are reliably met. The shop has no prior history on the unit, no record of the previous alignment, and no instruction beyond the immediate request. The result is a correctly performed alignment that fails to solve the problem, repeated at intervals, with tire spend continuing throughout.
A coordination layer changes what the shop is asked to do. A program that holds per-unit service history knows the truck was aligned in the spring, sees that it is back for the same complaint, and directs the shop to inspect the steer axle components before touching the alignment rack. That is not a more skilled shop. It is the same shop given better instructions.
If your fleet's tire spend has stayed high despite regular alignments, the fleet maintenance plans page covers how per-unit service tracking and shop coordination work together to catch exactly this pattern. To look at whether repeat alignments are showing up in your own maintenance history, reach out through the contact page with your fleet profile and recent service records.
